What is the Tellus Power 480–720kW Distributed DC Charging System?

It is a distributed DC fast charging system that separates centralized power cabinets from remote driver-facing dispensers. It is available in 480kW, 600kW, and 720kW main power cabinet configurations.

How many charging connectors can the system support?

The 480kW and 600kW configurations support up to 6 connectors. The 720kW configuration supports up to 12 connectors.

What is the benefit of a distributed DC charging system?

A distributed design allows the main power cabinet to be positioned separately from the driver-facing dispensers. This supports cleaner site layouts, flexible dispenser placement, and multi-stall charging configurations.

What connector types are available?

The system supports CCS1 and NACS dispenser options, including standard 350A dispensers and 500A liquid-cooled dispenser options.

Does the Tellus Power Distributed DC Charging System support OCPP?

Yes. The system supports OCPP 1.6J and is OCPP 2.1 ready.

Tellus Power 480–720kW Distributed DC Charging System

Q: Where is the Tellus Power 480–720kW Distributed DC Charging System best suited?

It is suited for fleet depots, public charging hubs, highway charging sites, large commercial parking facilities, and other multi-stall EV charging deployments.

Centralized Power for Multi-Stall DC Fast Charging

The Tellus Power Distributed DC Charging System separates the main power cabinet from the driver-facing dispensers, helping fleet depots, public charging hubs, and high-demand commercial sites support multiple charging positions with flexible cabinet and dispenser configurations.

Download Brochure

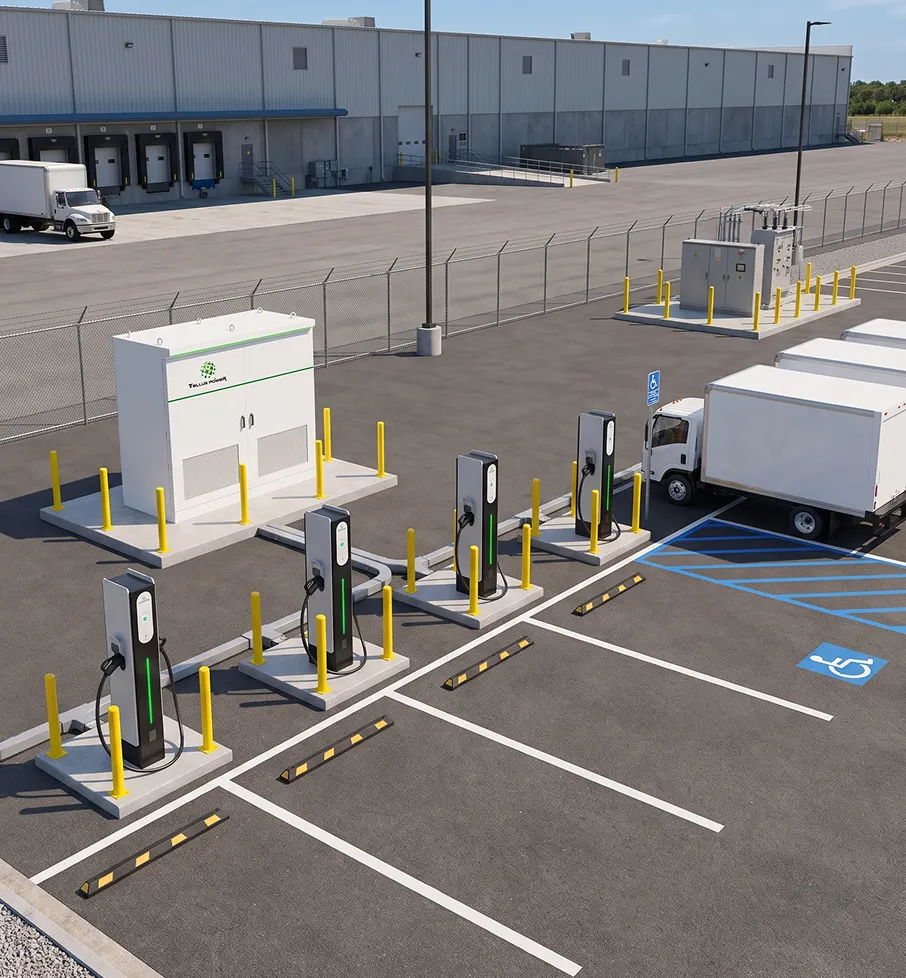

Four electric vehicle charging stations in a parking lot with a truck parked at one station.

480–720kW Central Power Cabinet

Choose from 480kW, 600kW, or 720kW main power cabinet configurations.

Remote Dispenser Layout

Separate dispensers from the power cabinet to support better stall placement and vehicle flow.

Up to 12 Connectors

Support up to 6 connectors on 480kW / 600kW systems and up to 12 connectors on 720kW systems.

Networked Operations

Ethernet, Wi-Fi, 4G, OCPP 1.6J, and OCPP 2.1 ready backend communication support.

Why Choose the 480–720kW Distributed System?

The Tellus Power Distributed DC Charging System gives operators a flexible charging architecture with centralized power cabinets and remote dispensers, helping support multi-stall layouts across fleet depots, public charging hubs, and large commercial charging sites.

Two Parts, One Distributed Charging System

The Tellus Power Distributed DC Charging System is made of two main components: centralized power cabinets and remote dispensers. Together, they help operators build cleaner, more flexible multi-stall charging layouts.

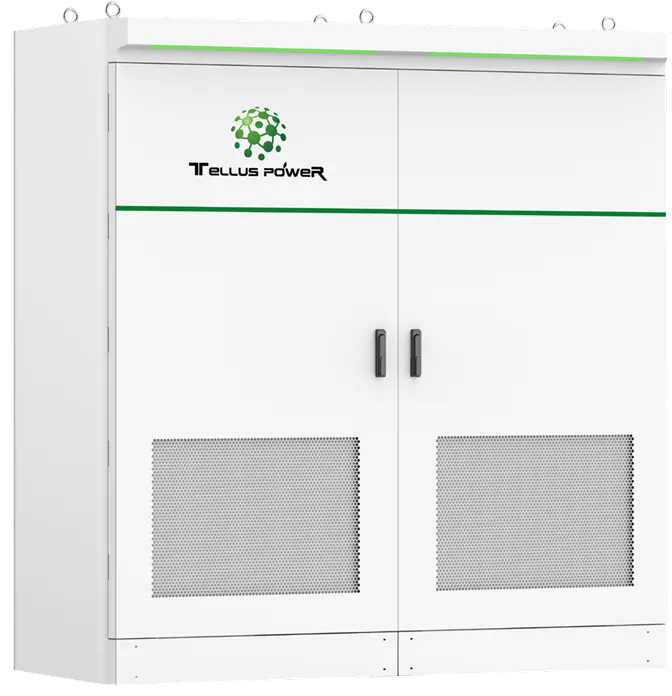

White Tellus Power electrical cabinet with dual doors and ventilation panels at the bottom.

Main Power Cabinet

The main power cabinet centralizes DC power delivery for larger charging sites and distributes power to remote dispensers.

480kW, 600kW, and 720kW cabinet options

480Vac ±10%, 50/60Hz AC input

150–1000VDC output voltage

1600A, 2000A, or 2400A output current by cabinet size

Ethernet, Wi-Fi, and 4G connectivity

OCPP 1.6J with OCPP 2.1 ready architecture

97% peak efficiency

UL2202 and UL2231-1/-2 compliant

Remote CCS1 and NACS Dispensers

Remote dispensers provide the driver-facing charging interface. They can be positioned closer to vehicles while the main power cabinet stays centralized.

CCS1 and NACS dispenser options

350A standard output current

500A liquid-cooled dispenser options

150–1000VDC output voltage

5-inch LCD touchscreen with LED indicator

RFID card, MAC authentication, optional app, and optional credit card reader

Ethernet, Wi-Fi, and 4G connectivity

Natural cooling or liquid cooling

UL2202 and UL2231-1/-2 compliant

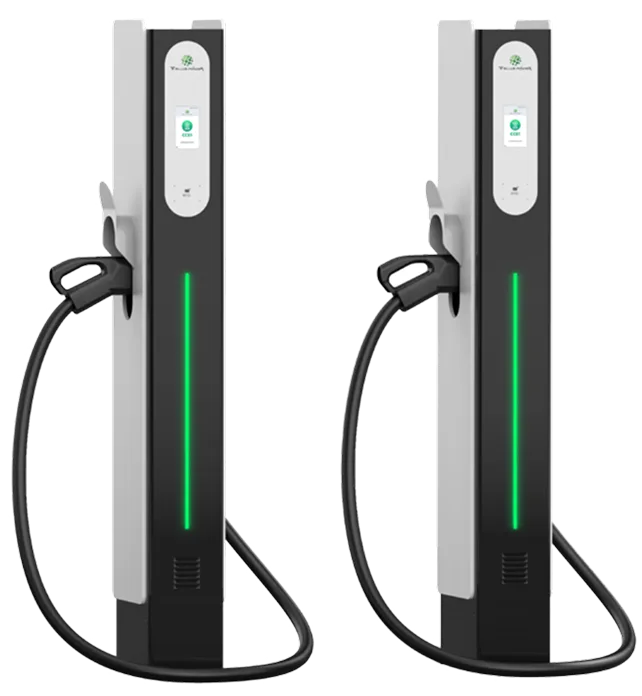

Two Tellus Power electric vehicle charging stations with black and gray panels and green light strips.

Built for Multi-Stall Charging Sites

Built for larger EV charging sites that need multiple charging positions, flexible dispenser placement, and centralized power distribution.

Fleet Depots

Centralize power with dispensers positioned near fleet vehicles.

Public Charging Hubs

Support multiple fast-charging positions from one power system.

Highway Charging Sites

Design around quick access, traffic movement, and driver turnover.

Large Parking Facilities

Add multi-stall DC fast charging across commercial parking facilities.
