Siemens VersiCharge Blue 80A Series

Up to 19.2kW · 80A · 240VAC
Designed for commercial, fleet, and high-demand AC charging environments, the VersiCharge Blue 80A delivers fast Level 2 charging with smart connectivity, durable protection, and flexible wall or post mounting.
Download Brochure

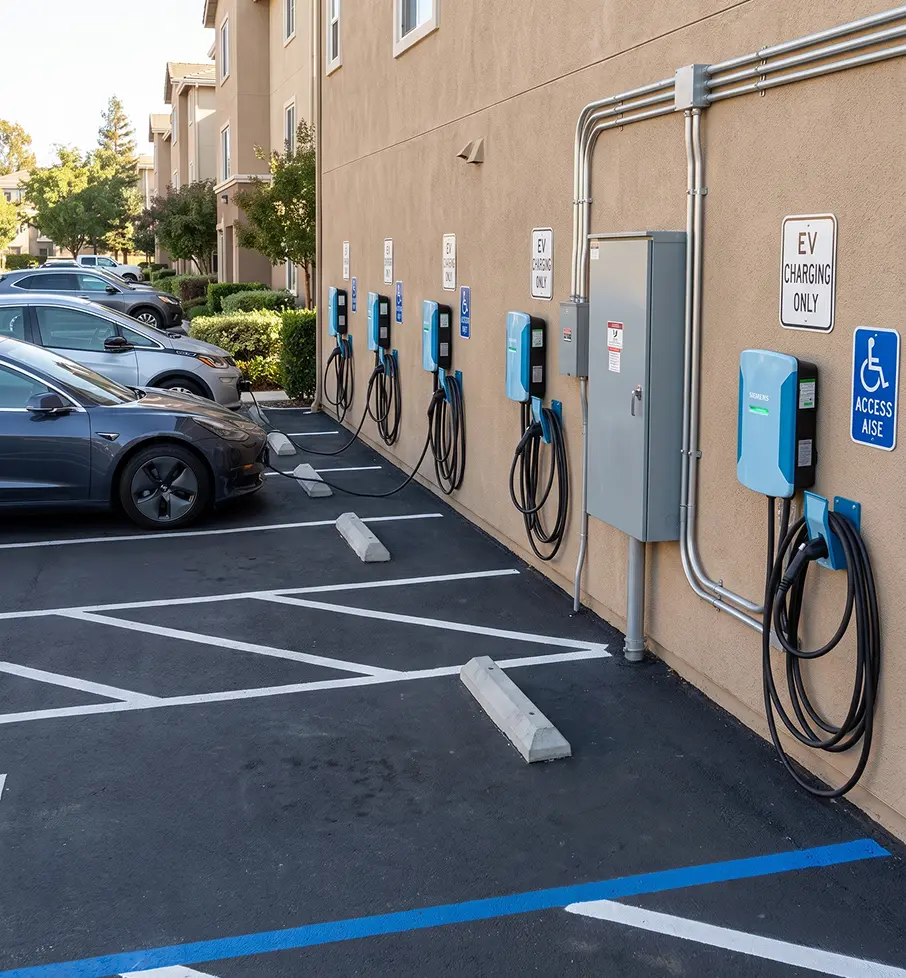

Row of blue Siemens electric vehicle charging stations mounted on a beige wall with EV parking spots.Round blue badge with American flag, text reads 'Bababaa compliant Made in America'.

Key Features

A high-output AC charger designed for faster Level 2 charging, connected operations, and commercial-grade durability.

High-Output AC Charging

Up to 19.2kW AC output at 80A.

Commercial Vehicle Ready

Designed for fleet and commercial applications.

Smart Connectivity

Wi-Fi and cellular interfaces with OCPP 1.6 backend protocol.

Durable Outdoor Design

NEMA 4 and IK10 rated for commercial environments.

Flexible Installation

Supports wall or post mounting options.

Faster AC charging with 80A / 19.2kW output

Adjustable current settings from 12A to 80A

Energy Star and Energy Star Connected certified

cUL listed for commercial charging applications

Over-the-air software upgrade support

Embedded energy metering

Top Benefits

A faster Level 2 charging option without moving into DC fast charging.

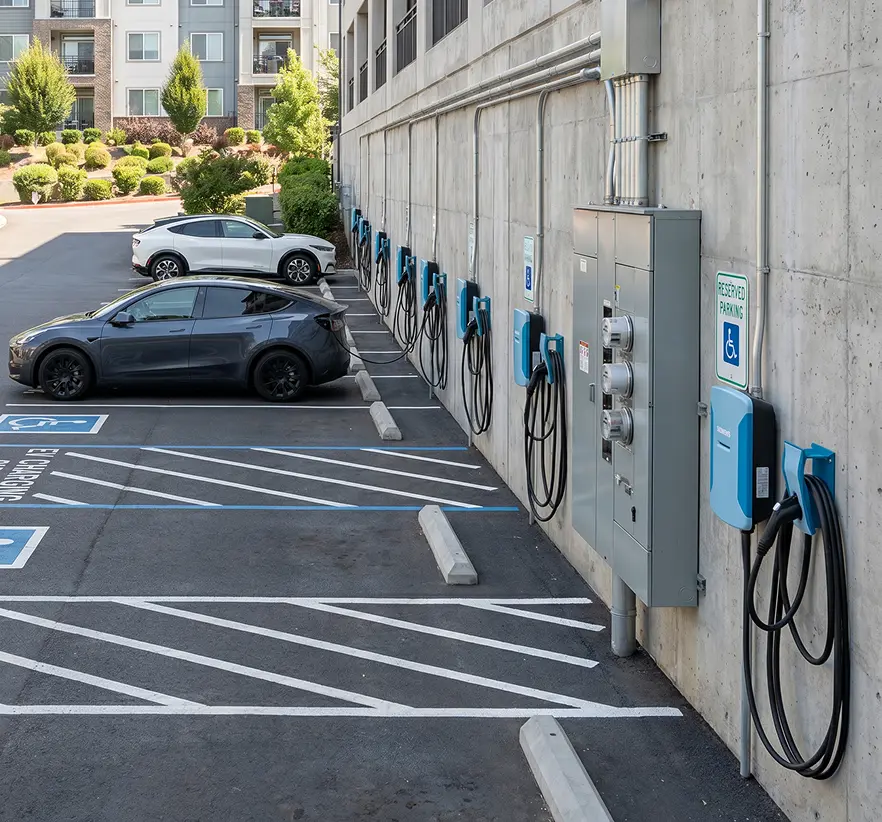

Row of blue electric vehicle chargers mounted on a concrete wall in a parking lot with cars parked.

Core Applications

Built for commercial locations where higher-output AC charging, smart connectivity, and durable installation options matter.
Parking
Multi-Family
Work Places
Fleet

VersiCharge Blue™ 80 AC Series

Power

Charging Mode
Level 2
AC Power Output
Up to 19.2kW
Rated Output
240VAC at 80A
Required Breaker
100A breaker for full 80A output
Power Supply Voltage
120/208V or 120/240V AC, 60Hz
Rated Current Settings
12A, 16A, 32A, 40A, 48A, 64A, 80A
Vehicle Connection
J1772 Type 1 plug
Cable Length
24 ft

Connectivity & User Access

Communication Interfaces
Wi-Fi and cellular
Backend Protocol
OCPP 1.6
OCPP Certification
OCPP 1.6 certified
User Authentication
OCPP, ISO 15118-2 hardware-ready
Configuration
Sifinity Go or Sifinity Setup mobile app
Software Updates
Over-the-air updates
Network Sharing
Connects to one non-cellular charger by Wi-Fi within 20 ft line of sight
LED Indicators
Charging status, connectivity status, fault status

Safety, Durability & Compliance

Environmental Rating
NEMA 4
Impact Rating
IK10
Ground Fault Protection
20 mA
Energy Metering
Embedded metering, 2% across operating temperature range
Operating Temperature
-40°C to +50°C, with derating above 50°C
Operating Altitude
6,562 ft
Certifications
cUL listed, FCC Part 15 Class A
Energy Certification
Energy Star and Energy Star Connected

General

Mounting Options
Wall or post mounting
Dimensions (H x W x D)
16.8 in. x 11.6 in. x 4.2 in.
Weight
27 lbs
Colors
Siemens blue and FE gray
Warranty
3-year limited warranty
Buy American
Buy American compliant
Catalog Number
8EM1315-7BG16-1FH2
Product Type
80A VersiCharge Blue charger, cellular/Wi-Fi model
Siemens VersiCharge Blue electric vehicle charger with attached cable and plug.

Ready to Install VersiCharge Blue 80 at Your Property?

DynaChrg can help you evaluate whether the Siemens VersiCharge Blue 80 AC Series fits your site’s charging demand, electrical capacity, installation plan, and long-term operating goals.
