Siemens VersiCharge Blue 48A AC Series

Up to 11.5kW · 48A · Level 2 AC
Designed for public, commercial, workplace, parking, and fleet charging environments, the VersiCharge Blue 48A AC Series delivers connected Level 2 charging with NTEP-certified metering, RFID access, smart communication options, and Buy American compliant deployment support.
Download Brochure

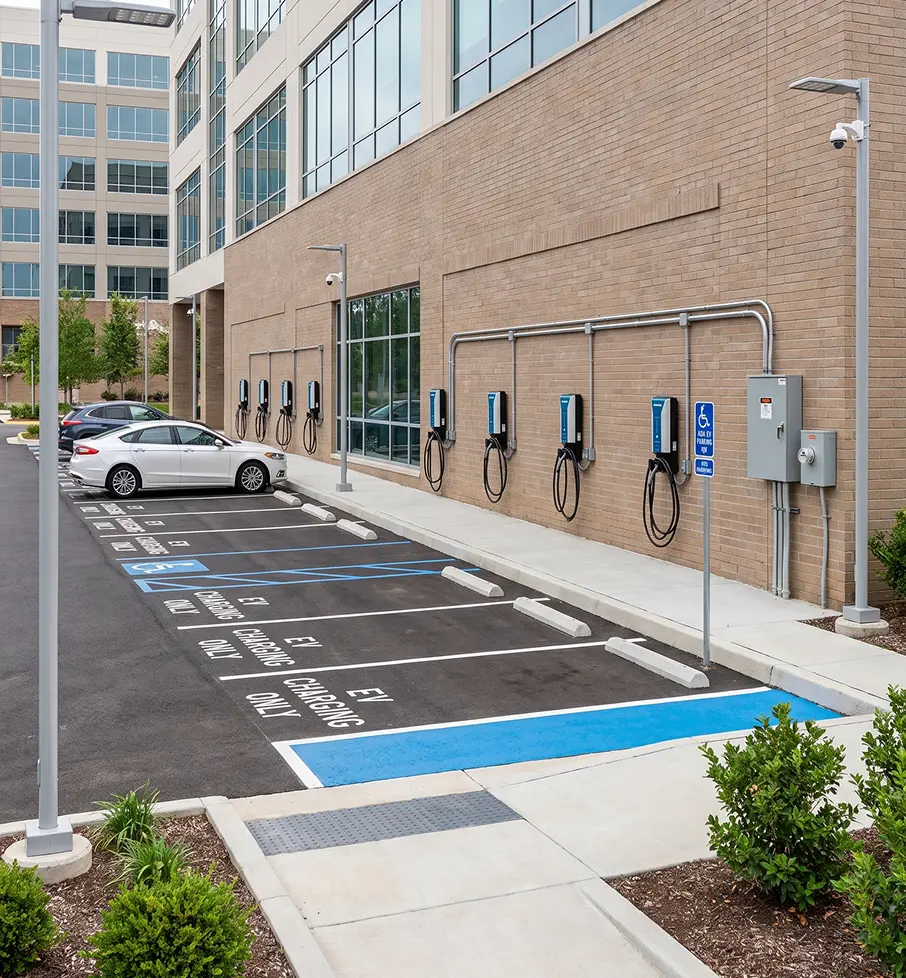

EV charging stations along a building wall with marked parking spaces, including one handicap spot.BABAAA Compliant badge with American flag and text Made in America in a blue circle.

Key Features

A connected Level 2 AC charger built for commercial sites that need reliable charging, network visibility, payment-ready metering, and flexible installation options.

NTEP-Certified Metering

Supports public charging use cases where accurate energy measurement is required.

RFID Authentication

Includes RFID access with local whitelist and OCPP-based authorization support.

Flexible Connectivity

Supports Wi-Fi, Ethernet, RS485 Modbus, LTE, and WCDMA communication options.

Indoor / Outdoor Rated

NEMA 4X enclosure with IK8 impact rating for commercial environments.

Buy American Option

VersiCharge Blue 48A supports Buy American compliant deployment needs.

Wi-Fi, Ethernet, cellular, and Modbus communication

25 ft charging cable on VersiCharge Blue

NTEP-certified metering with 1% accuracy

RFID access with local whitelist support

OCPP 1.6 backend protocol

Energy Star certified and cUL listed

Top Benefits

A strong fit for sites that need more than basic AC charging.

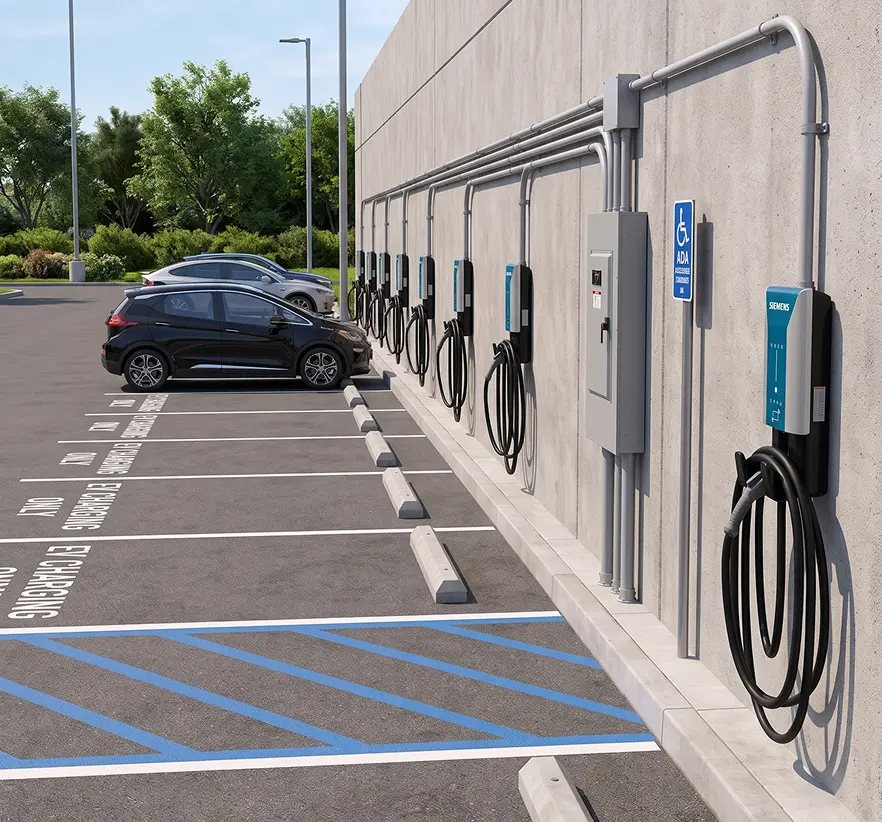

Row of Siemens electric vehicle charging stations with parked cars and a handicapped parking space.

Core Applications

Built for commercial locations where higher-output AC charging, smart connectivity, and durable installation options matter.
Parking
Work Places
Fleet

VersiCharge Blue™ 48A AC Series

Power & Charging

Charging Mode
Level 2
AC Power Output
Up to 11.5kW
Rated Output
48A
Required Breaker
60A breaker for 48A output
Power Supply Voltage
Single phase 208V / 240V AC, 60Hz
Rated Current Settings
12A, 16A, 24A, 32A, 40A, 48A
Vehicle Connection
J1772 plug
Cable Length
25 ft for VersiCharge Blue

Connectivity & User Access

Communication Interfaces
Wi-Fi, Ethernet, RS485 Modbus RTU, LTE, WCDMA
Backend Protocol
OCPP 1.6
Upgrade Path
OCPP 2.0.1-ready / upgradeable
User Authentication
RFID, local whitelist, MIFARE
ISO Readiness
ISO 15118-2 hardware-ready
Configuration
Sifinity Go or Sifinity Setup mobile app
Software Updates
Over-the-air updates
Load Management
Via OCPP and Modbus

Metering, Safety & Durability

Energy Metering
NTEP-certified metering
Metering Accuracy
1% accuracy
Ground Fault Protection
20 mA
Over Voltage Protection
267V, maximum 275V
Environmental Rating
Indoor / outdoor, NEMA 4X
Impact Rating
IK8
Operating Temperature
-30°F to +122°F
Operating Altitude
6,562 ft

Compliance & General

cUL Listed
UL 1998, UL 991, UL 2594, UL 2231, UL 2251
EMC
FCC Part 15 Class A / Class B by variant
Energy Certification
Energy Star 1.2 and Energy Star Connected certified
Buy American
VersiCharge Blue model is Buy American compliant
Dimensions
16.10 in x 7.09 in x 3.78 in
Weight
22 lbs
Color
Dark Blue for VersiCharge Blue AC
Warranty
3 year warranty

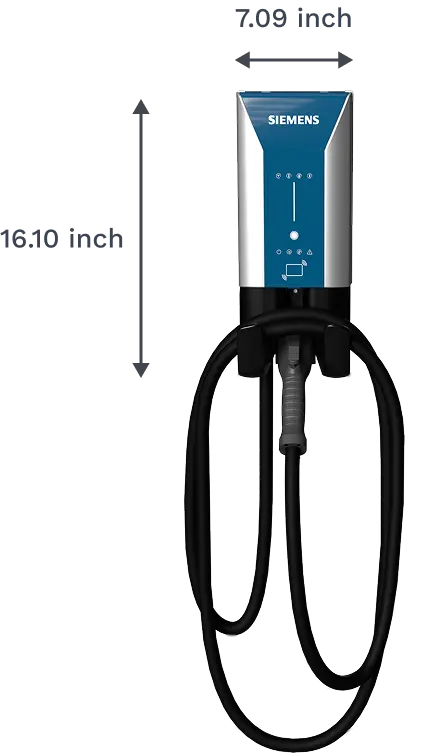

Siemens VersiCharge Blue 48A AC electric vehicle charging station with cable and connector.

Ready to add NTEP-certified AC charging to your site?

DynaChrg can help you evaluate whether the Siemens VersiCharge Blue 48A AC Series fits your site’s public charging, workplace, fleet, or parking requirements.
