Level 2 Commercial EVJ-005 (Dual Port) Charger

208 / 240VAC – 48A + 48A
Perfect for multi-vehicle households and small multi-unit dwellings, this Level 2 charger delivers reliable performance with two simultaneous outputs. Compact, powerful, and easy to install - ideal for driveways, garages, or shared parking.
Download Brochure

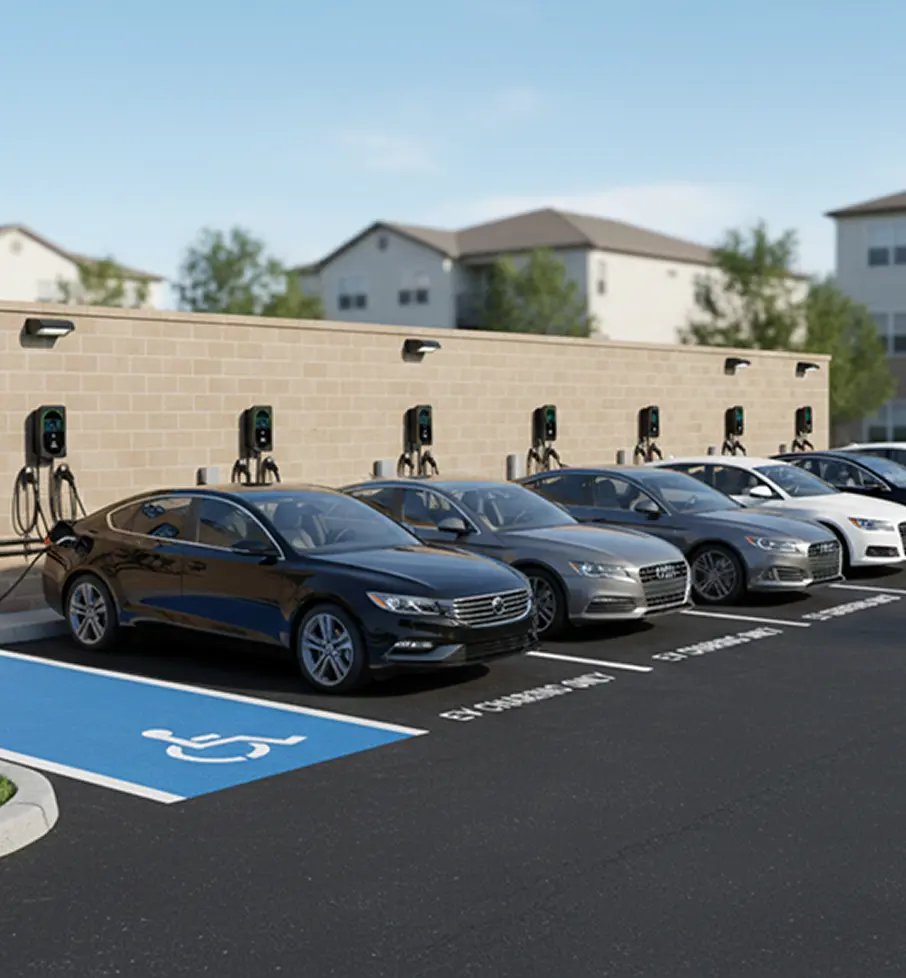

Electric cars parked at a row of charging stations next to a brick wall with a blue handicapped parking space.Blue badge with text 5 Years Warranty surrounded by stars.

Key Features

48A dual port charging, easy setup, EVES scheduling.

Optimum Charging Capability

Load adjustment capability up to 48A.

Easy Installation

Easy Installation for Electrical Contractor.

Off-Peak Grid Savings

Schedule your charging times when rates are lower.

Multi-Network Connectivity

Intelligent ethernet, cellular, WLAN switching.

RFID & Mobile App Identification

User authentication via RFID or Mobile App.

OCPP 1.6J / OCPP 2.0.1 Compliant

Easy configuration to any charging network

Automatic recovery after a minor fault

Dynamic load balancing via Gridify

Remote management via EVES

7" Touch Screen LCD

Top Benefits

EVES network integration, Gridify load balancing, and remote management.

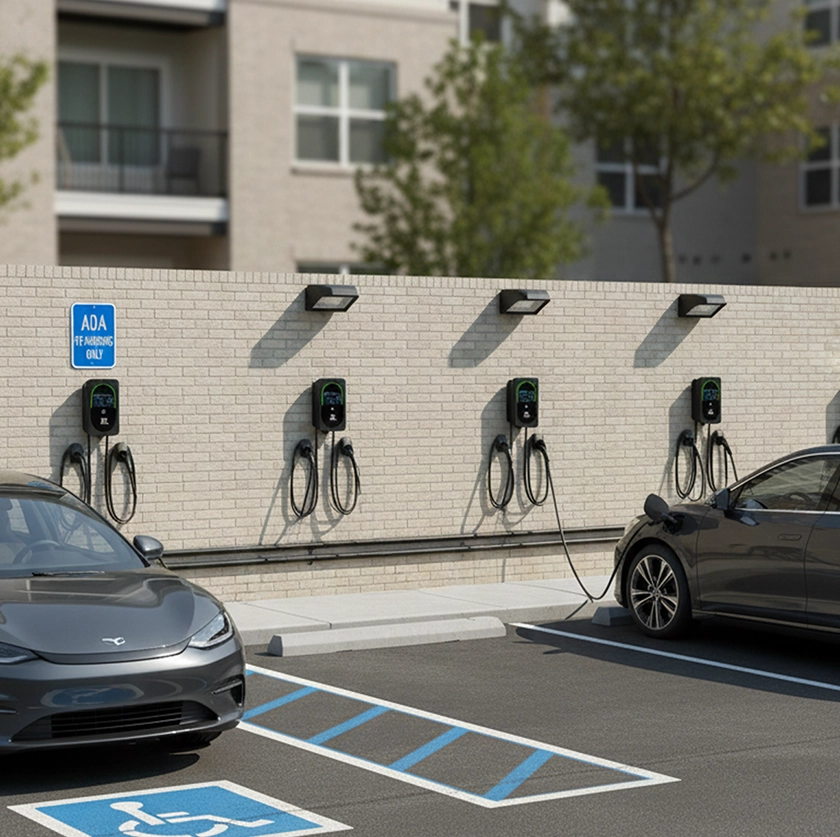

Electric car charging station with four chargers mounted on a brick wall and two electric cars parked, one in an ADA spot.

Core Applications

Versatile solutions for multi-family, commercial, and fleet EV charging needs.
Parking
Multi-Family
Hotels
Commercial
Work Places
Fleet
Shopping

EVJ-005

Power

Input Rating
208-240V AC
Output Current & Power
2*11.5 kW (48A)
Power Wiring
L1 / L2 / GND
Input Cord
Hardwire (cable not included)
Mains frequency
50 / 60 Hz
Connector Type
SAE J1772, Type 1, 18ft / SAE J3400, NACS 18ft (Optional)
Ground Fault Detection
CCID 20
Protection
UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection

User Interface

Status Indication
LED indication
Screen
4.3' touch screen (UI upgradable)
Language
English / Spanish / French
User Interface
Admin, user, and site level dashboards
Connectivity
Bluetooth5.2, Wi-Fi 6 (2.4G / 5G), Ethernet, 4G (Optional)
Communication Protocols
OCPP2.0.1 / OCPP 1.6J self-adaptation. ISO15118-2/3
Energy Management
Dynamic Load Balancing
User Authentication
Plug & Charge (Free), Plug & Charge (PnC). RFID Card. OCP
Card Reader
RFID, IS014443A. IS014443B, 13.56MHZ

Standards & Warranty

Safety & Compliance
Tested to UL991, UL1998, UL2231, UL2594 safety standards, meets ETL, FCC, Energy Star requirements
Warranty
36 months (optional extension available)

General

Intended Use
Multi-family / Commercial
Enclosure Rating
NEMA 4 (IP65), 1K08
Operating Altitude
<6561ft (2000m)
Operation Temp.
-40 °F ~ +131 °F (-40 °C ~ +55 °C)
Storage Temp.
-40 °F ~ +185 °F (-40 °C ~ +85 °C)
Operating Humidity
5 - 95%
Mounting Type
Wall mount / Pedestal (optional)
Color
White. Black (Customizable)
Product Dimensions
15.83" x 9.61" x 4.64" (402×244×118mm)

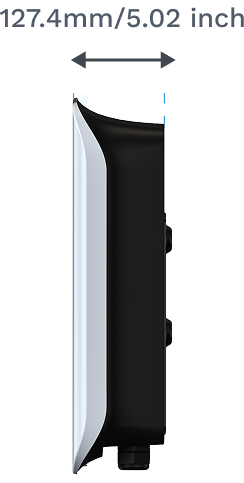

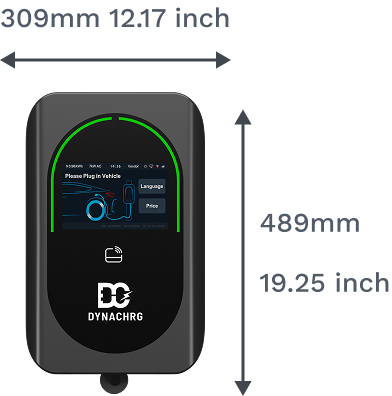

Black rectangular EV charging station with screen and dimensions 309mm by 489mm labeled in mm and inches.Side view of a device showing its depth measurement of 127.4mm or 5.02 inches.
