Level 2 Commercial  EVJ-002 48A & 80A Charger

208 / 240VAC – 48A/80A
The EVJ-002 by DynaChrg is a high-performance Level 2 charger built for commercial and residential use. With up to 80A / 19.2kW output, it delivers fast charging for nearly all EVs. EVES-connected, with dynamic load balancing via Gridify.
Download Brochure

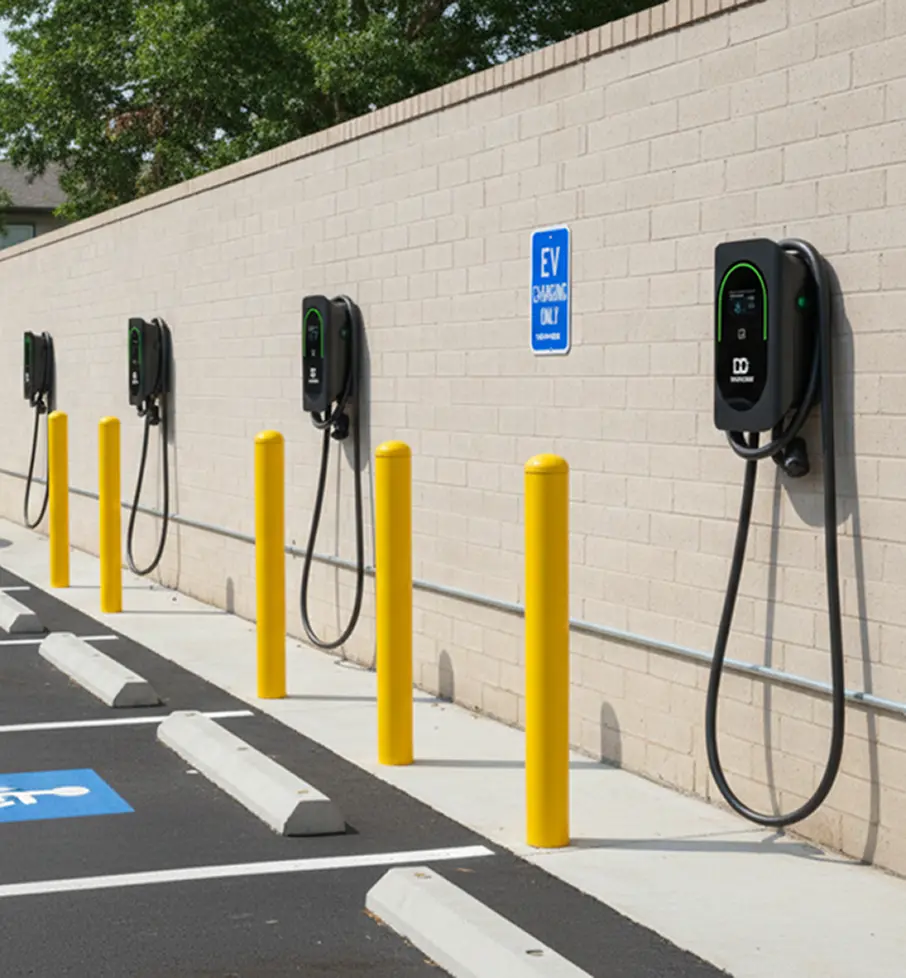

Row of electric vehicle charging stations mounted on a brick wall with yellow bollards in front and parking spaces nearby.Blue badge with text 5 Years Warranty surrounded by stars.

Key Features

OCPP-certified charging, EVES connectivity, and energy management.

Multi-Scene Intelligent Charging

Four charging methods: Plug & Charge (Free), Plug & Charge (PnC), RFID card, and OCPP control.

Optimum Charging Capability

Up to 48A and 80A versions available.

Off-Peak Grid Savings

Lower rates with scheduled charging.

Smart Network Connectivity

Intelligent ethernet, cellular, WLAN switching.

RFID & Mobile App Identification

User authentication via RFID or mobile app

OCPP 1.6J / OCPP 2.0.1 Compliant

Easy configuration to any charging network

Automatic recovery after a minor fault

Dynamic load balancing via Gridify

Remote management via EVES

4.3" Touch Screen LCD

Top Benefits

EVES network integration, Gridify load balancing, and remote management.

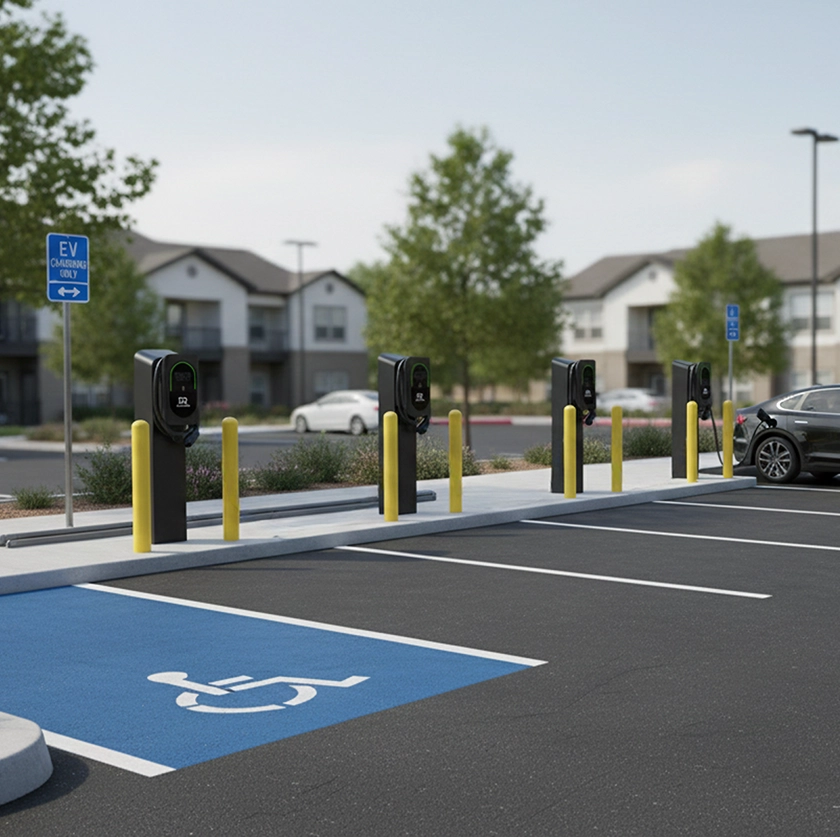

Electric vehicle charging stations in a parking lot with a disabled parking space marked in blue.

Core Applications

Versatile solutions for commercial, multi-family, fleet, and residential EV charging needs.
Residential
Parking
Multi-Family
Hotels
Commercial
Work Places
Fleet
Shopping

EVJ-002

Power

Input Rating
208-240V AC
Output Current & Power
11.5 kW (48A), 19.2 KW (80A)
Power Wiring
L1 / L2 / GND
Input Cord
Hardwire (cable not included)
Mains frequency
50 / 60 Hz
Connector Type
SAE J1772, Type 1, 18ft / SAE J3400, NACS 18ft (Optional)
Ground Fault Detection
CCID 20
Protection
UVP, OVP, RCD (CCID 20), SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection

User Interface

Status Indication
LED indication
Screen
4.3' touch screen (UI upgradable)
Language
English / Spanish / French
User Interface
Admin, user, and site level dashboards
Connectivity
Bluetooth5.2, Wi-Fi 6 (2.4G / 5G), Ethernet, 4G (Optional)
Communication Protocols
OCPP2.0.1 / OCPP 1.6J self-adaptation. ISO15118-2/3
Energy Management
Dynamic Load Balancing
User Authentication
Plug & Charge (Free), Plug & Charge (PnC). RFID Card. OCP
Card Reader
RFID, IS014443A. IS014443B, 13.56MHZ

Standards & Warranty

Safety & Compliance
Tested to UL safety standards; meets ETL, FCC, Energy Star, and ISO 15118 requirements, including Plug & Charge support.
Warranty
36 months (optional extension available)

General

Button
Emergency Button
Enclosure Rating
NEMA 4 (1P65), 1K08
Operating Altitude
<6561ft (2000m)
Operation Temp.
-40 °F ~ +131 °F (-40 °C ~ +55 °C)
Storage Temp.
-40 °F ~ +185 °F (-40 °C ~ +85 °C)
Operating Humidity
5 - 95%
Mounting Type
Wall mount / Pedestal (optional)
Color
White. Black (Customizable)
Product Dimensions
15.83" x 9.61" x 4.64" (402×244×118mm)
Package Dimensions
21.06" x 16.14" × 11.42" (535*410×290mm)
Weight
13.78lbs (6.25kg)

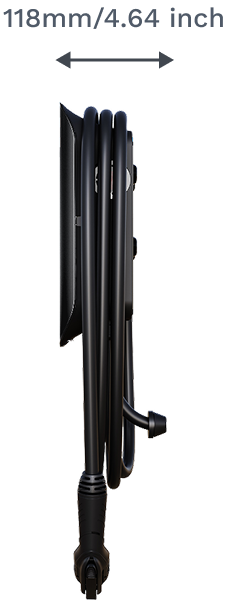

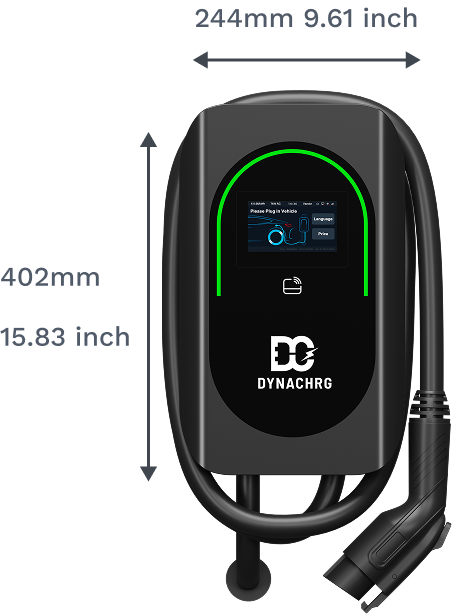

Dynachrg EV charger with cable, measuring 244mm wide and 402mm tall.Side view of a Level 2 EV charger.
