Level 2 Commercial EVIO29-32 & EVIO29-40 Charger

240V / 32A / 7.7 kW
Designed for residential use, the DynaChrg Level 2 charger delivers fast, safe, and efficient charging right at home. The ideal solution for single-family homes, townhouses, and small multi-unit dwellings.
Download Brochure

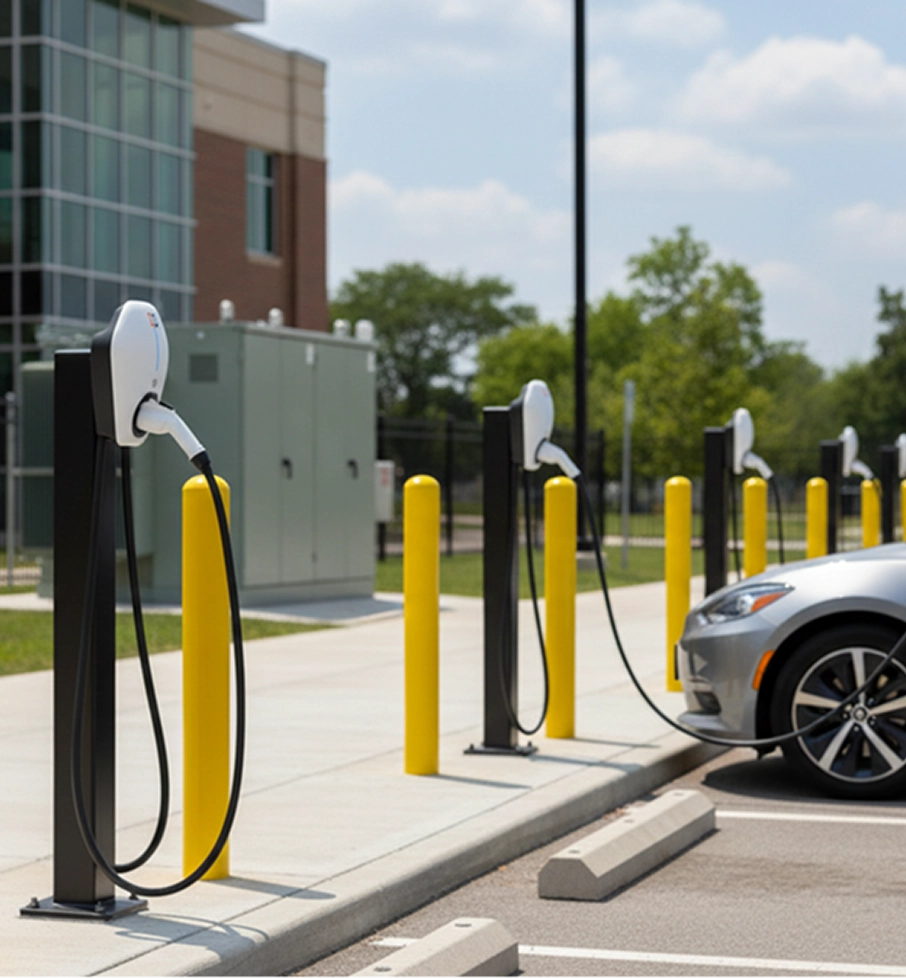

Electric vehicle charging station with multiple chargers and a silver car plugged in on a sunny day.Blue badge with text 5 Years Warranty surrounded by stars.

Key Features

Advanced capabilities designed for powerful, efficient, and intelligent residential charging.

Powerful Charging Capability

Available in 32A and 40A versions for fast, efficient energy delivery.

Unique Design

Independent backplate for easy installation and maintenance.

Off-Peak Grid Savings

Optimize charging during off-peak hours to reduce utility costs.

Multi-Network Connectivity

Reliable Ethernet, cellular, and Wi-Fi switching for performance.

RFID & Mobile App Identification

Access with RFID cards or mobile app-based user authentication.

OCPP 1.6J / OCPP 2.0.1 full profiles support

Easy configuration to any charging network

Automatic recovery after a minor fault

Dynamic load balancing support

Remote management via EVES

Small form factor

Direct CT connection for load balancing

Top Benefits

Unmatched reliability and flexibility for residential, multi-family, and parking EV charging.

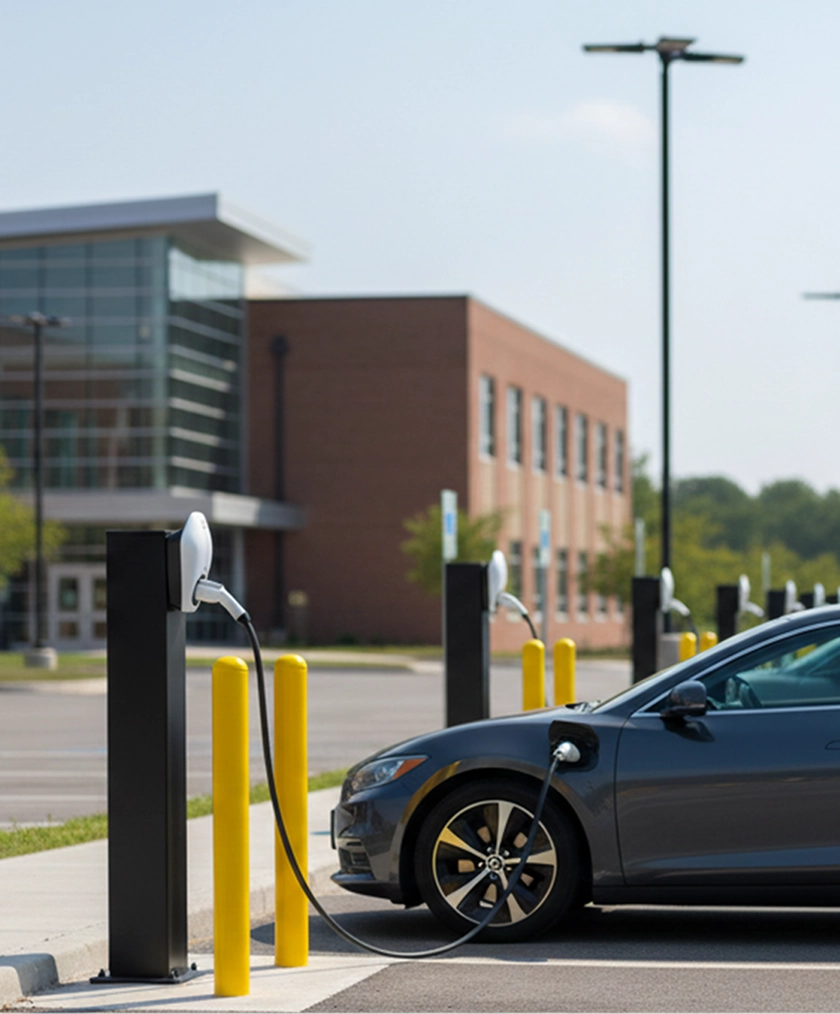

Electric car charging at a public charging station in a parking lot near modern buildings.

Core Applications

Versatile solutions tailored for diverse EV charging needs - across multi-family properties and residential parking.
Residential
Parking
Multi-Family

EVI029-32. EVIO29-40

Power

Voltage and Wiring
Nominal 200-240 VAC single-phase
Frequency (Hz)
50/60Hz
Current Output
32A Max, 40A Max
Charging Connector
Type-1 SAE j1772
RCD
Integrated, 20mA CCID
Electrical Protection
Over current, Under voltage, Over voltage, Over temperature, Surge protection, Short circuit, Ground fault

User Interface

Network Connectivity
Ethernet, WLAN, Celuar
RFID
RFID Reader Optional- ISO 14443 A/B
Data Protocol
OCPP1.6J Ful, OCPP2.0.1 Core
Display
No Display, Option of having multiple colors of cover plate
Charger Configuration
OCPP1.6J Ful, OCPP2.0.1 Core
User Authentication
RFID Card Reader (optional)
Network Interface
Ethernet, WLAN Cellular (optional)
Charging Protocol
OCPP 1.6, upgradable to OCPP2.0.1

Standards & Warranty

Safety & Compliance
Tested to UL 2594:2022, UL 2231 safety standards, meets CSA C22.2 No. 280-22 requirements
Warranty
24 Months (Optional extension)

General

Intended Use
Residential / Multi-Family
Buttons
1x Physical Button
Indications
Standby (Green), Charging (Flashing Green), Fault (Red), Warning (Flash Red)
Operation Temp.
-30 °C ~ 50 °C / -22 °F ~ 122 °F
Storage Temp.
-40 °C ~ 70 °C / -40 °F ~ 158 °F
Working Humidity
5%~95% without condensation
Mounting Type
Wall Mount (default) / Floor post (optional accessory)
Enclosure Rating
Type 3R
Charging Cable Length
5m
Dimension H x W x D, mm
288mm x 208mm x 128mm
Weight
4Kg including Packing
Mobile App
ios/Android (Optional)

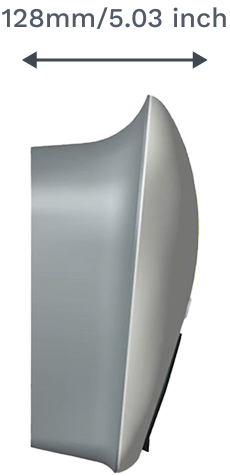

Front view of a white electric vehicle charger with dimensions 208mm width and 288mm height shown.Side view of a level 2 EV charging station with a length indicated as 128mm or 5.03 inches.
