Level 2 Commercial EVIO28-32, EVIO28-40, EVIO28-50 Charger

208 / 240VAC – 32A / 40A / 50A

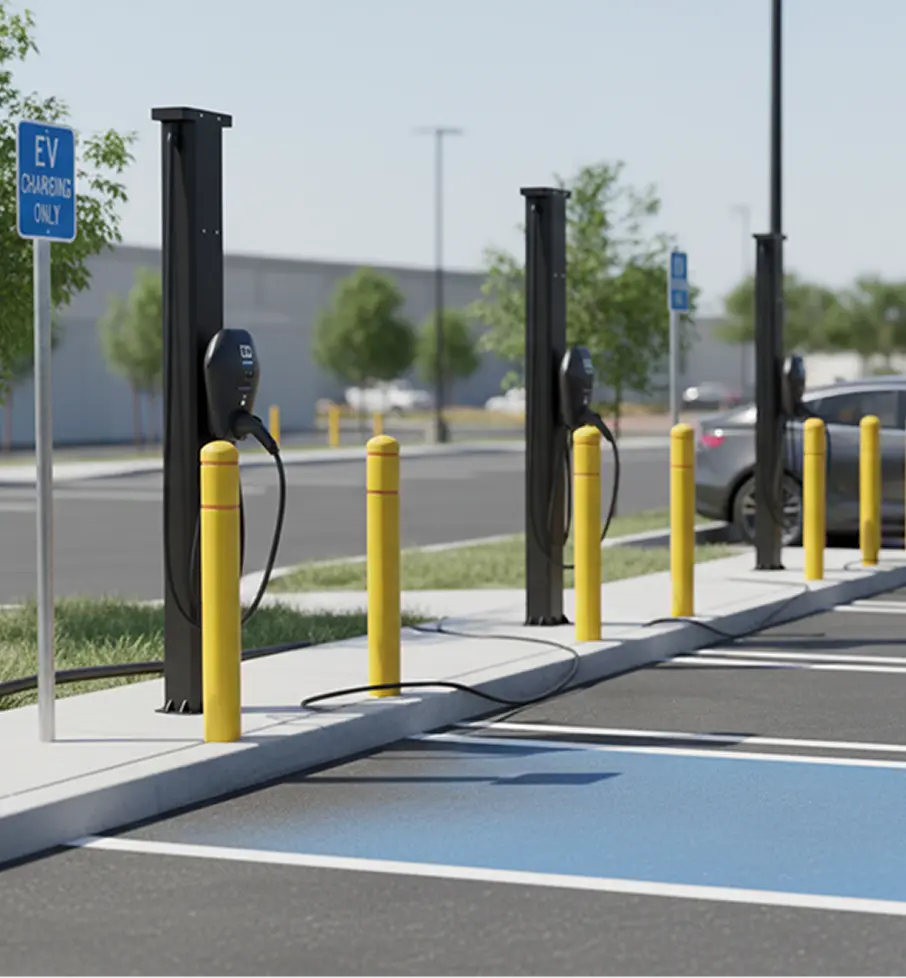

DynaChrg’s Level 2 EV Charging Station is ideal for commercial lots, municipal spaces, and shared-use properties. With rugged construction and flexible power options (32A/40A/50A), it delivers reliable performance for public and semi-public applications - day in, day out.
Download Brochure
Blue badge with text 5 Years Warranty surrounded by stars.

Key Features

Core Capabilities That Power Smarter EV Charging.

Powerful Charging Capability

Up to 32A and 40A options for faster, flexible charging.

Unique Design

Modular backplate for easy install and maintenance.

Off-Peak Grid Savings

Charge during off-peak hours to save on costs.

Multi-Network Connectivity

Seamless switching across Ethernet, WiFi, or cellular.

RFID & Mobile App Identification

User authentication via RFID or mobile app

OCPP 1.6J / OCPP 2.0.1 Compliant

Remote management and smart charging

Dynamic Load Balancing & Local Sub metering Support

Automatic recovery after a minor fault

Easy configuration to any charging network

Top Benefits

Unmatched reliability and flexibility for commercial, multi-family, and fleet EV charging.

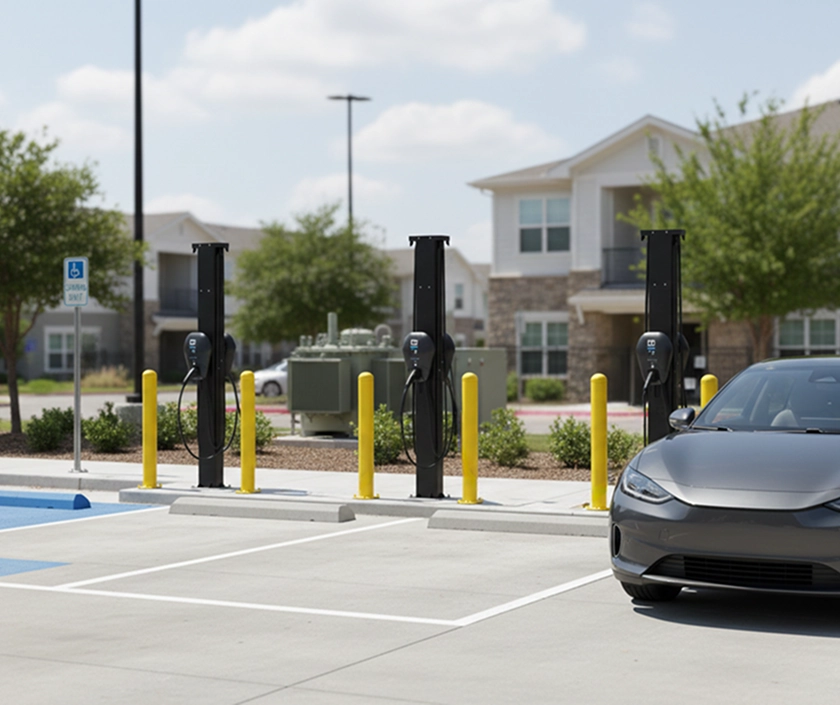

Three electric vehicle charging stations with a gray car parked in one, in a residential parking lot.

Core Applications

Versatile solutions tailored for multi-family, commercial, and fleet EV charging needs.
Residential
Parking
Multi-Family
Hotels
Commercial
Work Places
Fleet
Shopping

EVIO28-32, EVIO28-40, EVIO28-50

Power

Voltage and Wiring
Nominal 200-240 VAC single-phase
Frequency (Hz)
50/60Hz
Current Output
32A Max, 40A Max
Charging Connector
Type-1 SAE j1772
RCD
Integrated, 20mA CCID
Electrical Protection
Over current, Under voltage, Over voltage, Over temperature, Surge protection, Short circuit, Ground fault

User Interface

Network Connectivity
Ethernet, WLAN, Celuar
RFID
RFID Reader Optional- ISO 14443 A/B
Display
2.8' LCD
Charger Configuration
DIP Switch, Web Portal
User Authentication
RFID Card Reader (optional)
Network Interface
Ethernet, WLAN Cellular (optional)
Charging Protocol
OCPP 1.6J, upgradable to OCPIP2.0.1

Standards & Warranty

Safety & Compliance
Tested to UL 2594:2022, UL 2231 safety standards, meets CSA C22.2 No. 280-22 requirements
Warranty
24 Months (Optional extension)

General

Intended Use
Residential / Commercial
Buttons
1 x Physical Button
Indications
Standby (Green), Charging (Flashing Green), Fault (Red), Warning (Flash Red)
Operation Temp.
-30 °C ~ 50 °C / -22 °F ~ 122 °F
Storage Temp.
-40 °C ~ 70 °C / -40 °F ~ 158 °F
Working Humidity
5%~95% without condensation
Mounting Type
Wall Mount (default) / Floor post (optional accessory)
Enclosure Rating
Type 3R
Charging Cable Length
5m
Dimension H x W x D, mm
380mm x 288mm x 141mm
Weight
6.5Kg including Packing
Mobile App
ios/Android (Optional)

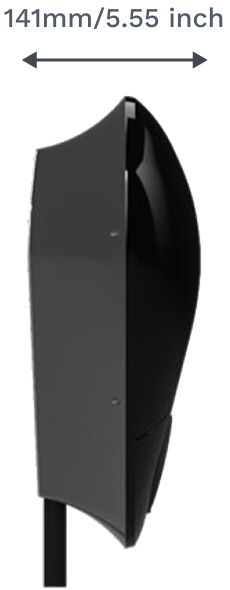

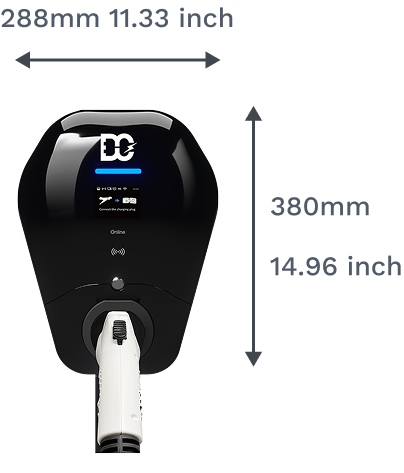

Front view of black EV charging station showing dimensions: 288mm width and 380mm height.Side view of a black curved level 2 EV charger.
